Push-Out Furnaces

Push-Out Furnaces are one option in removable crucible furnaces and have a variety of configurations.

Push-Out Furnaces provide nonferrous and precious metal casters with clean, compact and highly productive crucible melting systems. When designed to have multiple crucible openings your production can be increased drastically with a near 100 percent power utilization.

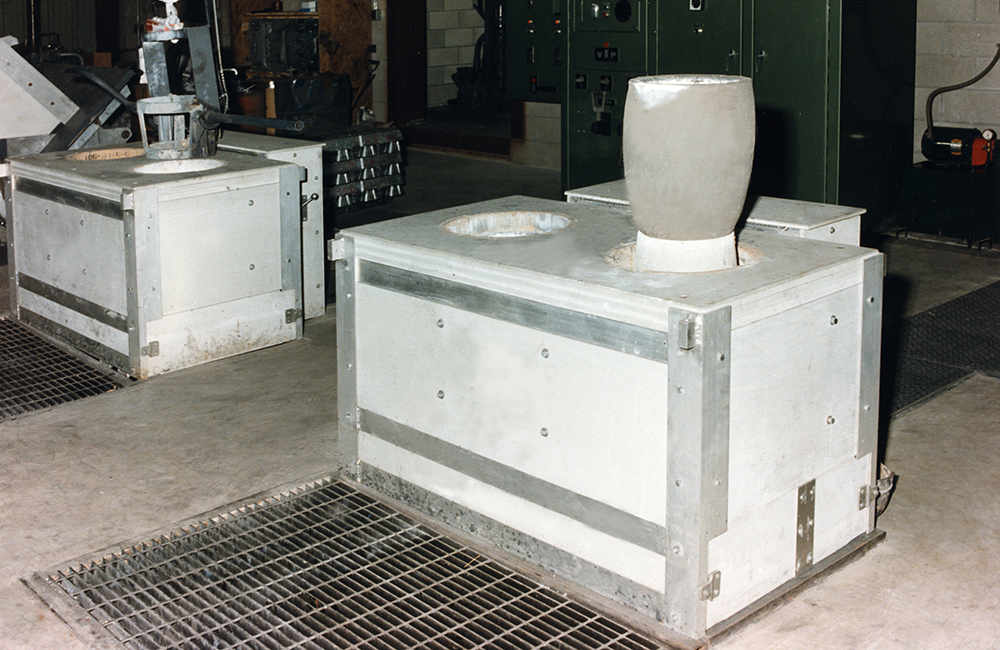

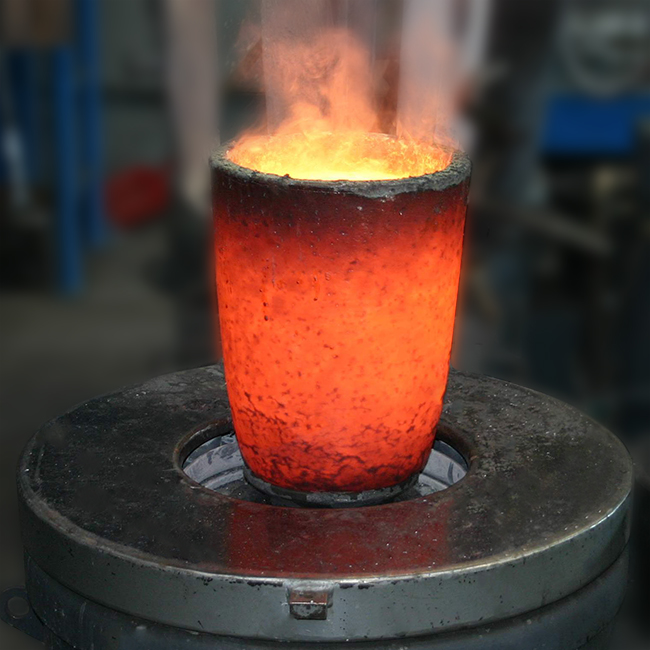

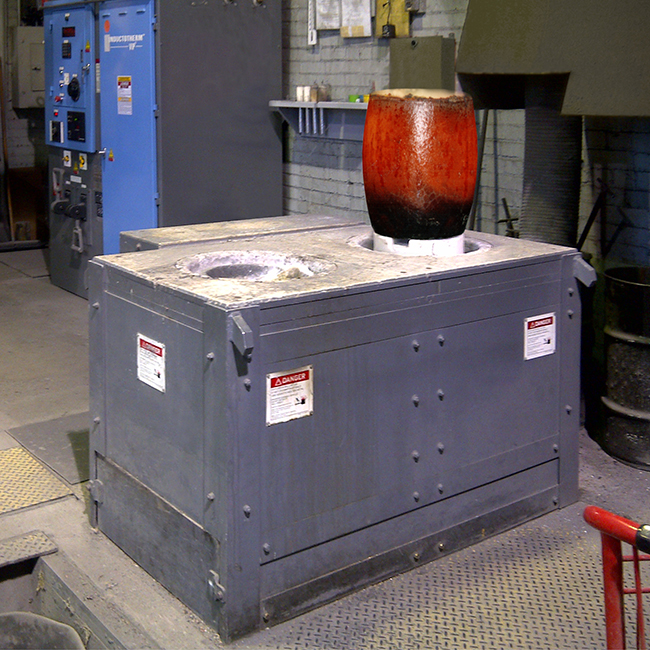

With a double push-out furnace configuration, when the first crucible is molten and ready for pouring, power is transferred to the second coil and the first crucible is then raised for removal. Because power is transferred in just seconds by means of a safety-interlocked, two-position switch, throughput is increased and thousands of additional castings per year can be obtained. Hydraulic cylinders raise crucibles using minimal pressure. Their refractory overflow receptacles are designed to contain spills for added safety and ease of maintenance. Coils are lined with a heavy refractory cement to guard against spillage and to reduce heat losses. They are also available in multiple push-out furnace configurations.

REQUEST A QUOTE »

Inductotherm Corp.

10 Indel Ave., P.O. Box 157 Rancocas, NJ 08073-0157

Features

Standard FeaturesOptional Features

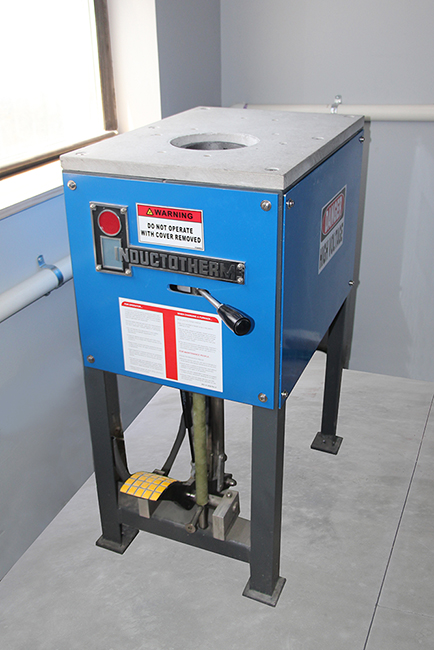

Refractory Overflow ReceptaclesFoot Valve Operated Cylinder
Safety Interlocked, Two-Position SwitchFume Extraction Control Systems
Pouring Cradle Systems

Tech Specs

CapacitiesFurnace TypesFactory Tested
50 to 300 Kilograms [120 to 675 Pounds] for Copper AlloysSingle Push-Out FurnacesCritical Components
20 to 100 Kilograms [40 to 225 Pounds] for Aluminum AlloysDouble Push-Out Furnaces
Click here to contact Inductotherm for Custom SolutionsMultiple Push-Out Furnaces
